      Zaptec Pro/Go



      Instructions for setting up a new location

      1. setup the location and charge points in zaptec portal
      2. select the newly created location in Zaptec portal

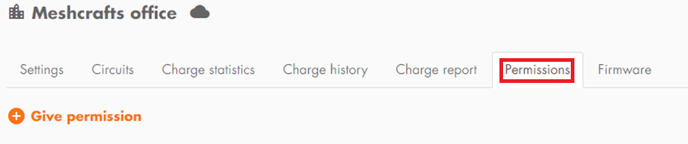

      3. select permissions from the top menu

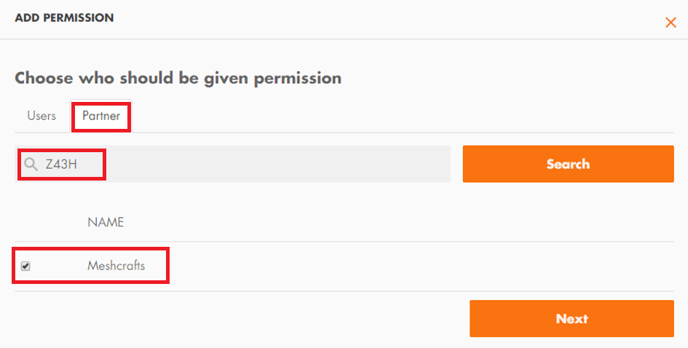

      4. Select Partner
         write Z43H and click Meshcrafts/Currentimage-20231010-052904.png
      5. 6 Select settings and copy Installation ID
      6. Open Curret portal (CURRENT)
      7. select add location
      8. select import from system, and paste in the Zaptec installation ID
      9. open the location and import chargers with same installation ID

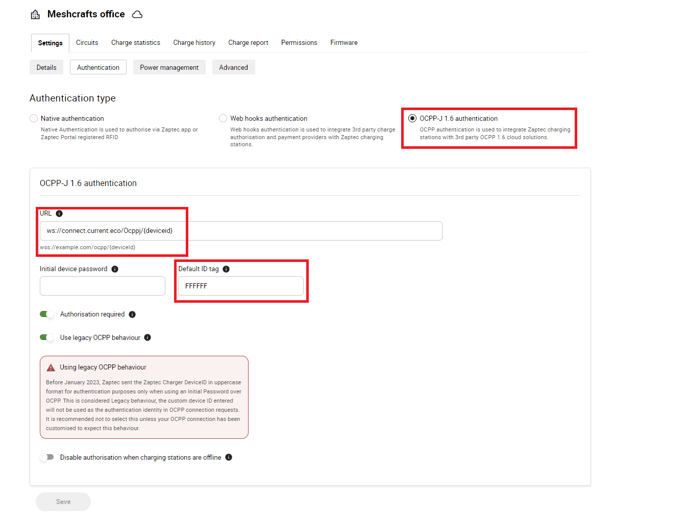

      10. go back to zaptec portal and Select Authentication in settings menu
      11. push OCPP-J 1.6 Authentification
      12. insert ws://connect.current.eco/Ocppj/{deviceid} in URL and FFFFFF in default ID tag
      13. click save



      Instructions for taking over an existing location

      setup the location and charge points in zaptec portal (Zaptec)
      1. select the location in Zaptec portal
      2. select premissions from the top menu
        image-20231010-052904 (1).png
      3. Select settings and copy Installation ID
      4. Open Curret portal (CURRENT )
      5. select add location
      6. select import from system, and paste in the Zaptec installation ID
      7. open the location and import chargers with same installation ID

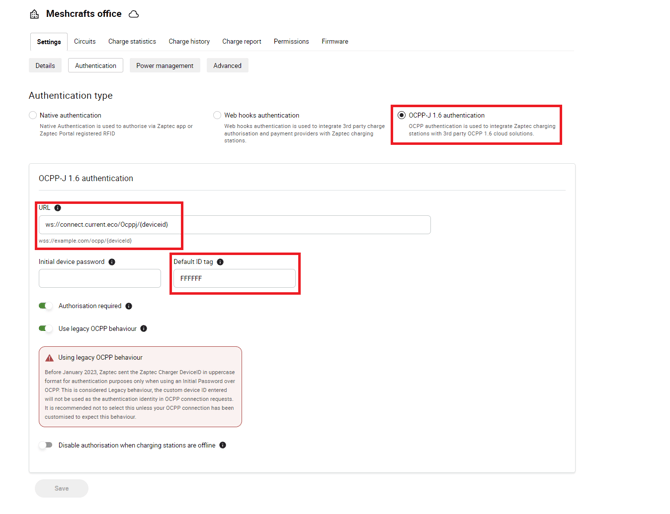

      8. go back to zaptec portal and Select Authentication in settings menu
      9. push OCPP-J 1.6 Authentification
      10. insert ws://connect.current.eco/Ocppj/{deviceid} in URL and FFFFFF in default ID tagimage-20231113-140442.png
      11. push save
      12. make sure that all charge point has cleared its local settings for ocpp
        the location is now good to go
